a) Equipped with two feed rollers. ATY can be produced with compressed air by over-feeding FDY such as nylon and polyester into the nozzle at an arbitrary rate.
b) Size of ATY loop and elongation can be adjusted with the second heater.
c) All processing conditions are determined by PLC. Setting can be carried out with touch panel.
d) Either side (R and L) of the machine can operate independently in different conditions.
e) Utilizes a line shaft driving system, allowing for uniform spindle quality.
f) Winding size is selectable from either 8 inches (200mm) or 10 inches (250mm).
g) The minimum number of spindles is 48. Extending spindles is available by every 48 spindles (one block).
The maximum number of spindles is 336.

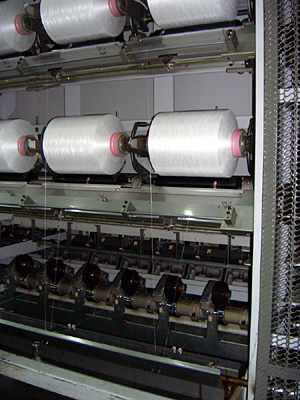

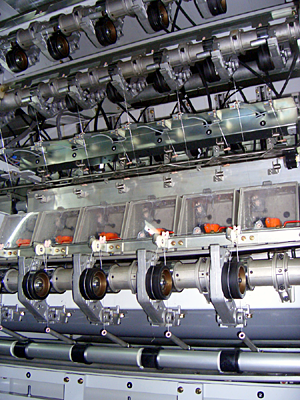

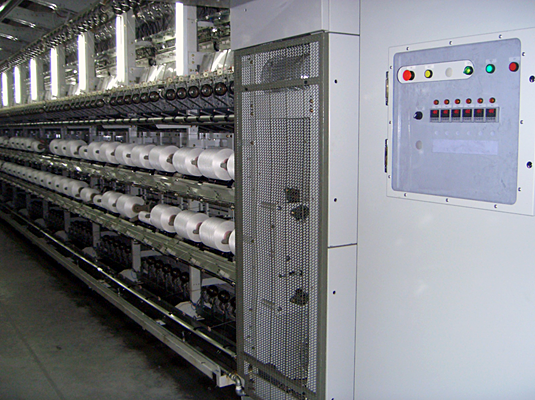

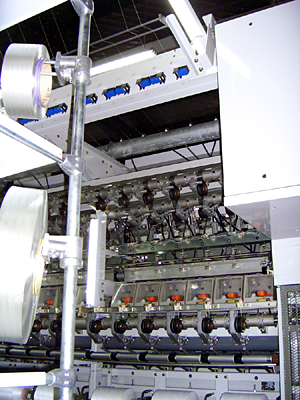

Photo Gallery
