Description of Creel stand for carbon fiber

1) Auto CF feed and tension control system with dancer rollers for each position.
No need for manual tension adjustment such as spring adjustment system
Auto tension adjustment is always working by dancer roller, AIKI original torque motor & inverters.

2) Simple operation
Simply input tension & designed speed on the touch-panel, and all position set simultaneously.

3) Alarm and Alert
LED blinks when CF breaks and supply Bobbins are run out.
All position equips LED. Alarm equipment is optional.

4) AIKI original back tension system
This system capable to absorb sudden change and unstable tension from bad-shape package.

5) Machine layout
Able to arrange machine layout as user requested based on AIKI standard layout.
If you need a catalog or further information,
please contact by e-mail from CONTACT link on upper part of our homepage.

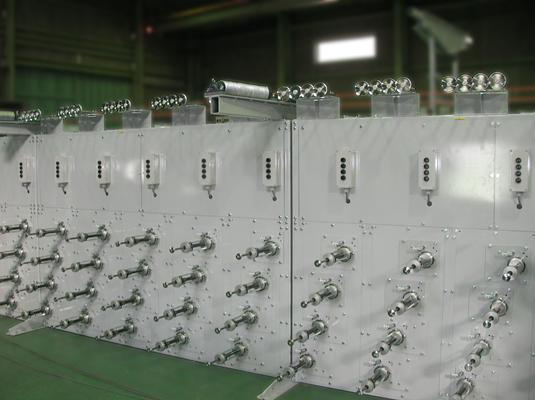

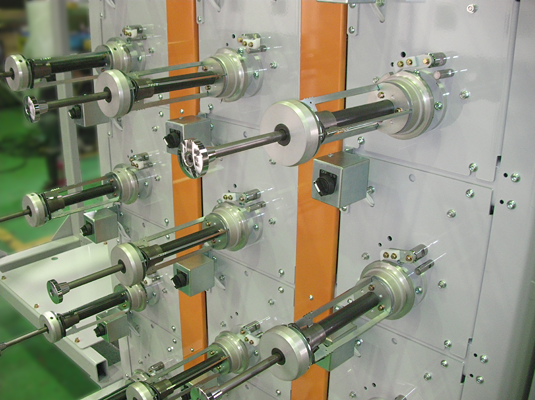

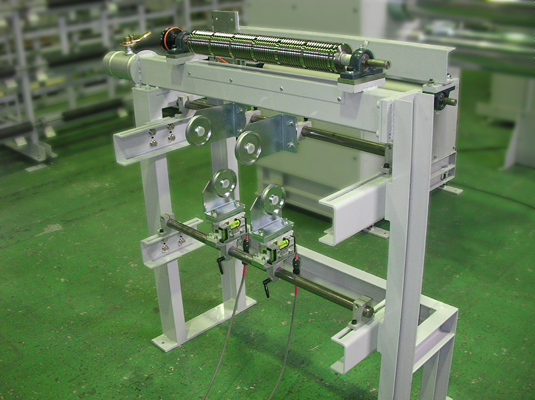

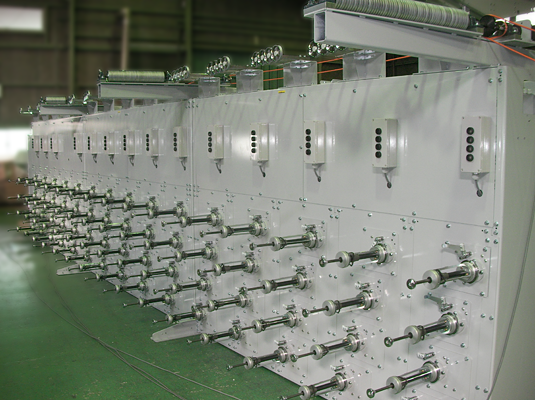

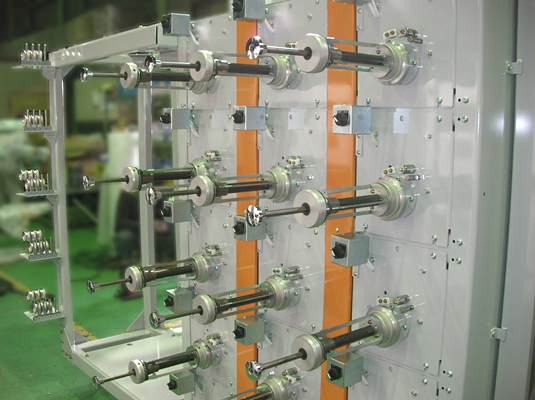

Photo Gallery
