PRODUCTS   Features of TH-211B

Machines for Synthetic fibers and Winder
Air Texturizing Machine
Air Covering Machine
Draw Texturizing Machine
Winding Machine
Monofilament Production Line
Splitting Machine
Texturizing Machine
TH-211B
Bulking Machine
Carbon fiber production related equipments
Creel stand for PAN Precursor
Creel stand for Carbon fiber
Winder for Carbon fiber
Winder for PAN Precursor
UD Prepreg Machine
Pilot Machine
Coated Yarn Production Equipment
Coating Machine
a) Equipped with two feed rollers, one delivery roller, one first heater, a triple-roller type pin spindle and a rotative creel as standard. DTY for splitting is produced by processing POY and FDY of continuous synthetic fibers such as nylon and polyester.
b) Equipped with two feed rollers so uneven unwinding tension of raw yarn can be absorbed.
c) Three-point retention spindle is utilized in the processing part so the spinner never slips due to high tension, ensuring stable production.
d) Using a rotative creel allows for trouble-free woolly splitting in the downstream process as it eliminates raw yarn twisting when releasing raw yarn.
e) All processing conditions are determined by PLC.
Setting can be carried out with either the touch panel or a PC.
f) Either side (R and L) of the machine can operate independently in different conditions.
Utilizes a line shaft driving system, allowing for uniform spindle quality.
g) Winding size is 10 inches (250mm) with a maximum winding weight of 14kg.
h) The maximum number of spindles is 192. Adding to it every 24 spindles (one block) is supported.

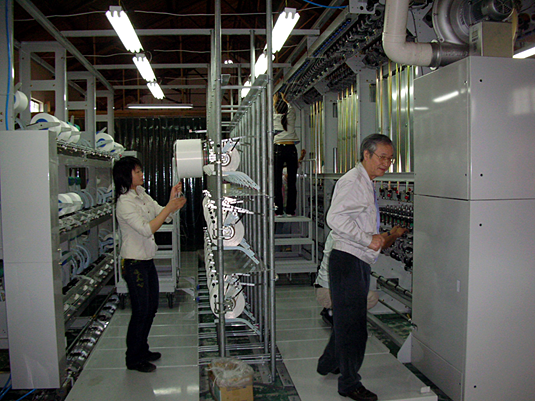

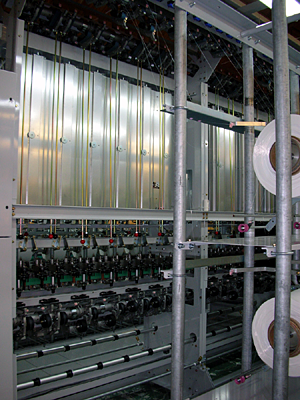

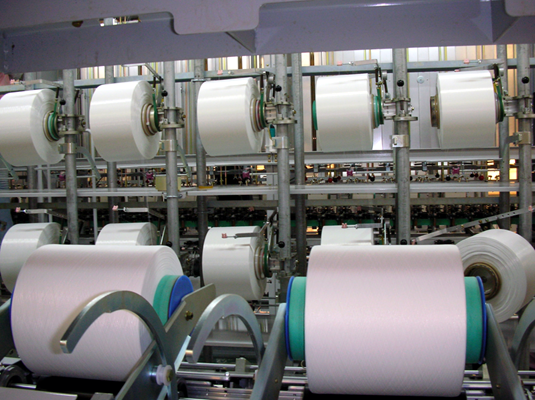

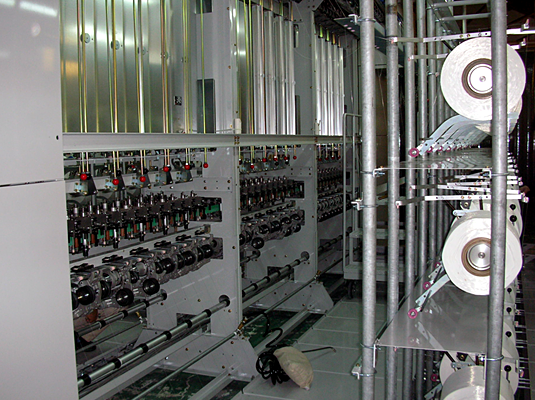

Photo Gallery
